University Department ISCTE – CVTT, Lisbon
Educational in Lisbon
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 301 – 500 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection, Constant Light Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Automatic Occupancy Detection, Weather Dependent Control, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, CO2 / Humidity Measuring, Natural Ventilation
- Security and Safety - Smoke/Fire Detection, Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Access Control, Interaction with HVAC/Lighting
- Operation and Visualisation - PC Visualisation, Web Servers, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Fuel or Water tank level control, Peak Demand Monitoring, Load Shedding
- Other - Irrigation Control
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming
- Blind and Shutter Control
Customers Description
ISCTE – Knowledge and Inovation is Lisbon University Institute’s the new R&D center that will house over a thousand researchers and hundreds of projects focusing on the knowledge transfer between social sciences and digital technologies.

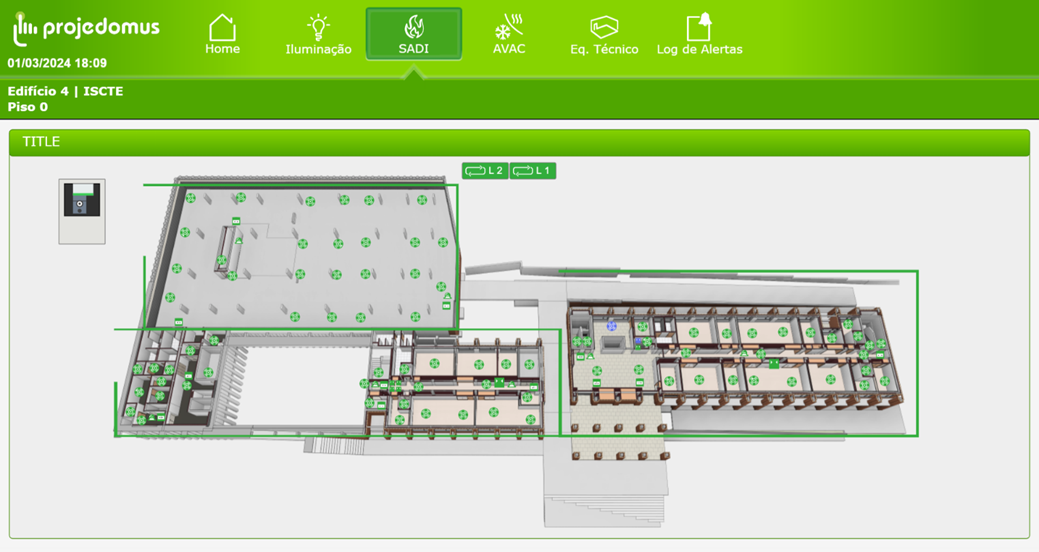

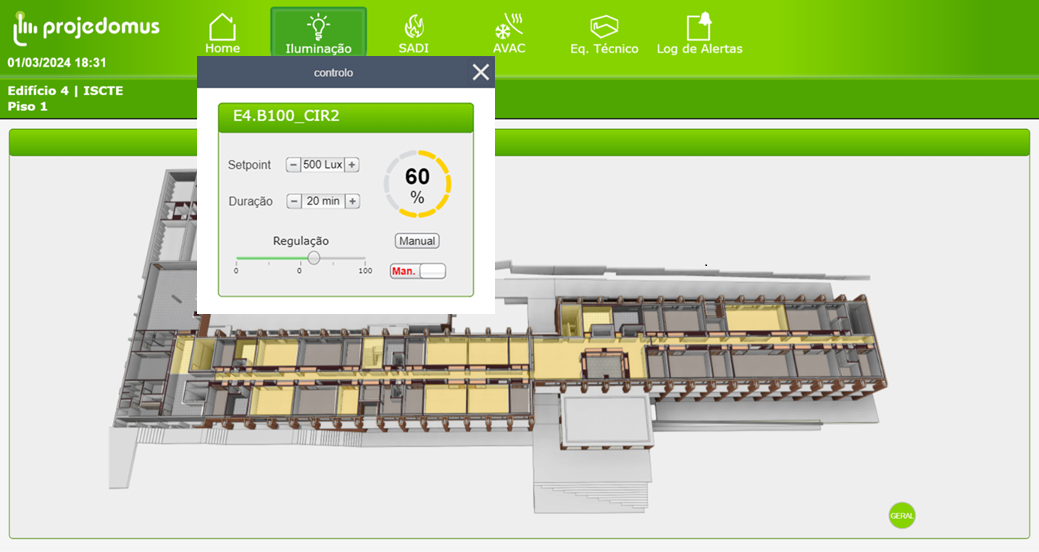

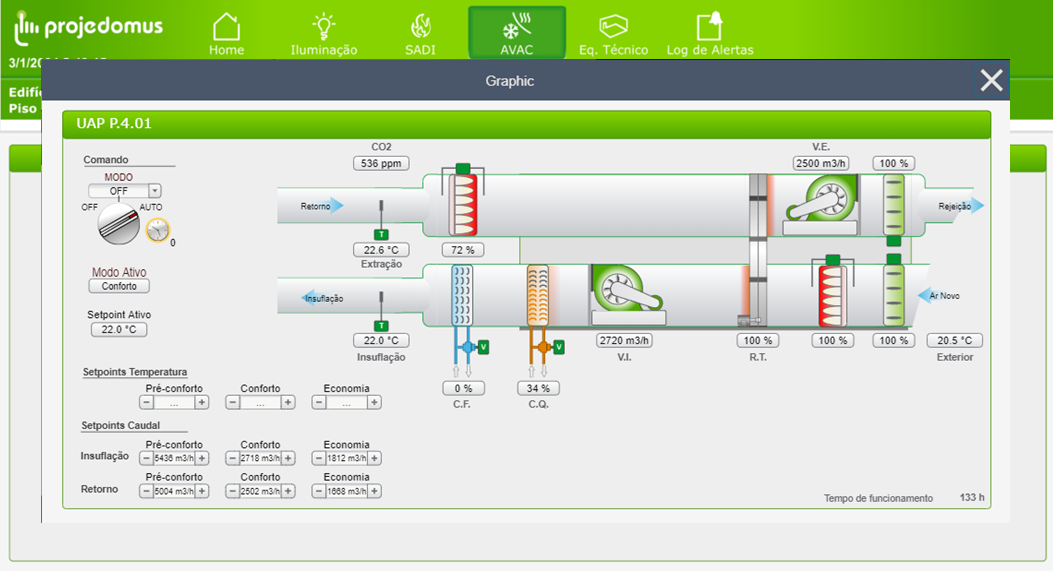

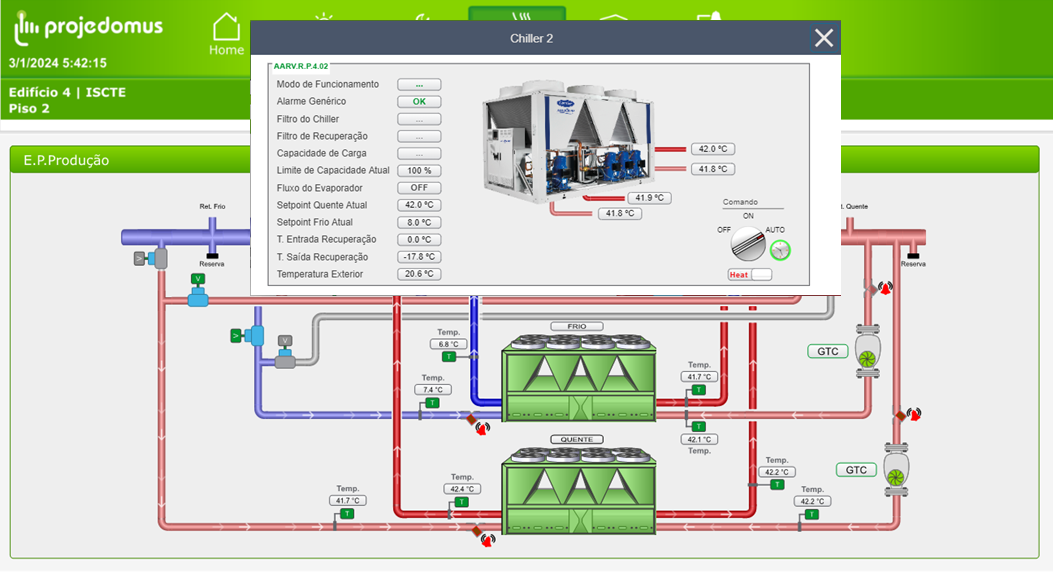

The BMS project includes access control for the class rooms and research rooms; lighting control using DALI combined with motion detection and constant light control; fire detection panel integrated on the BMS allowing to view in real time the status of every detector on the floorplans; alert management for electric, equipment and inundation faults; HVAC control including automatic management of air quality with AHU's and climate control with fancoils; Water and energy consumption monitoring with Eletric Vehicules Charging management.
Contact Information
| Company Name | Projedomus, Projectos E Instalações Eléctricas Inteligentes, Lda |
| Company Email | geral@projedomus.com |
| Company Website | https://www.projedomus.com/ |
| Contact Name | Daniel Afonso |
| Contact Function | Home/Building Owner |
