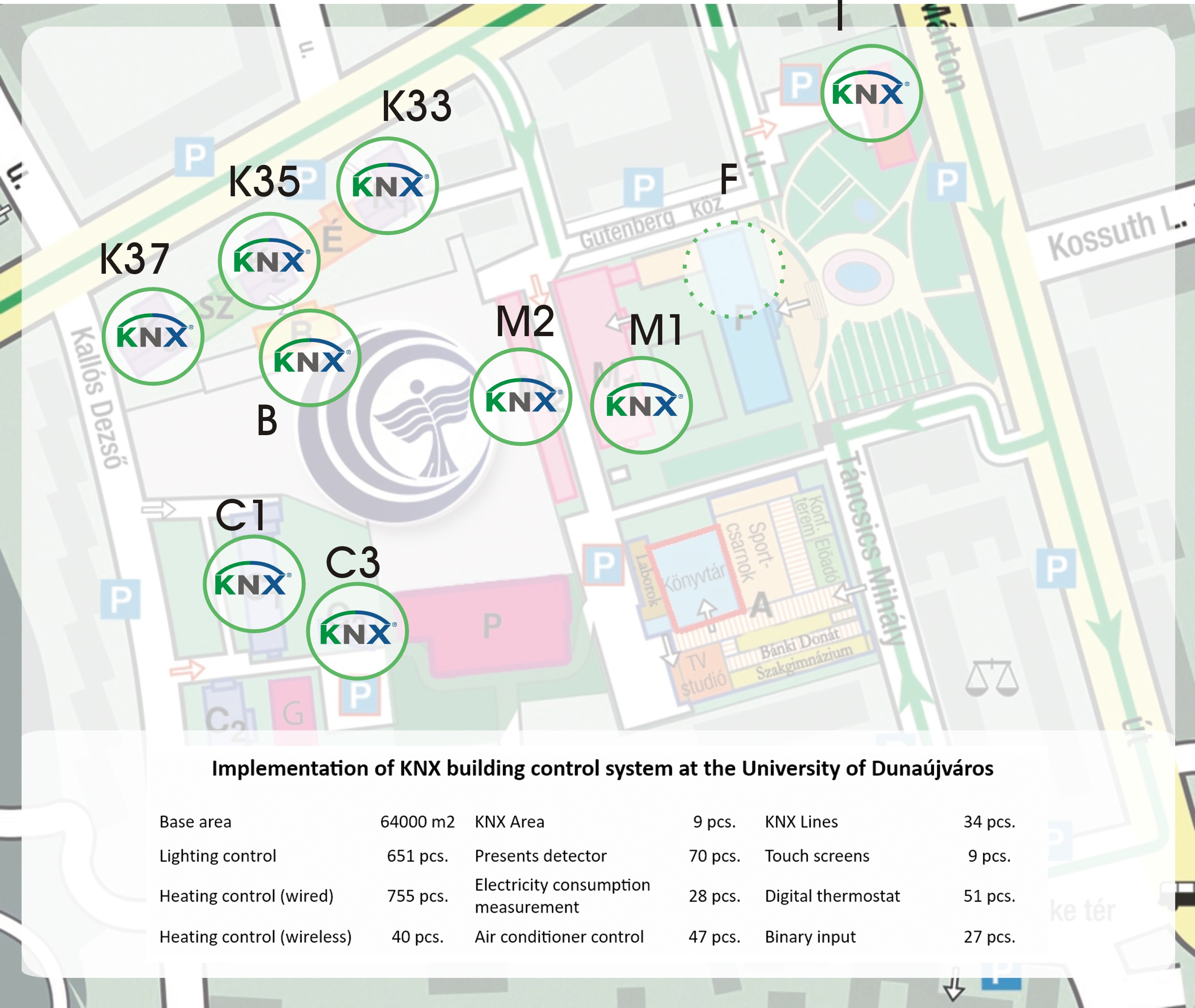

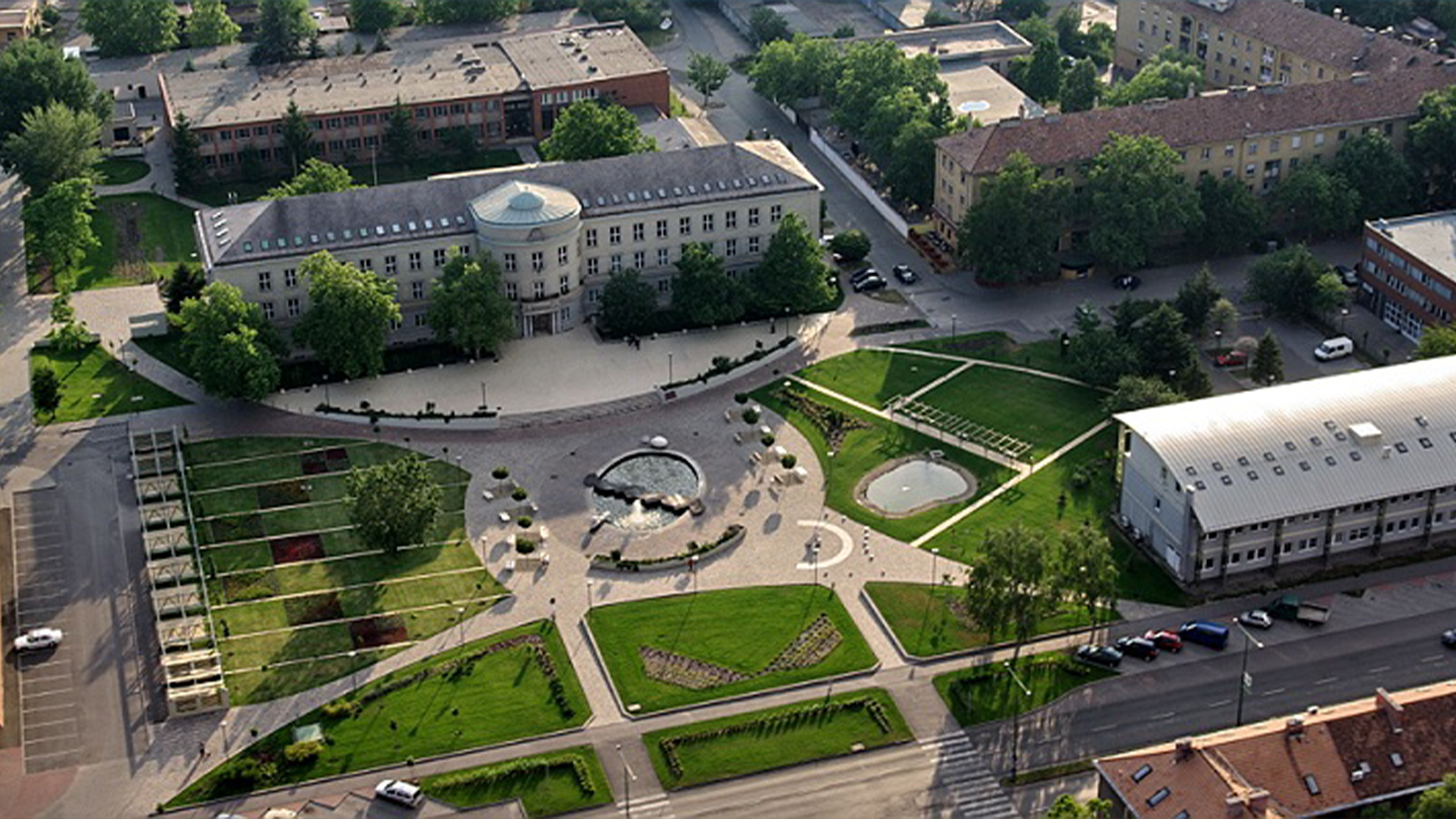

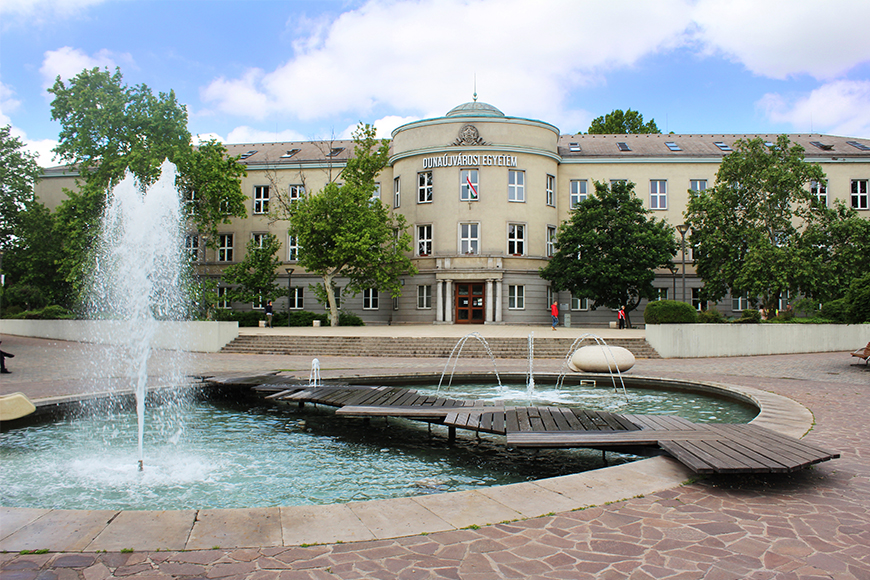

University of Dunaújváros, 9 buildings
Educational in Dunaújváros
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Educational |
| Project Type | Commercial |
| Year of Completion | 2024 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1.000+ |
| KNX Transmission Media | Twisted pair |
| Man Hours | 2.000+ |
| Man Power | 11 – 25 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Timed Control
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control

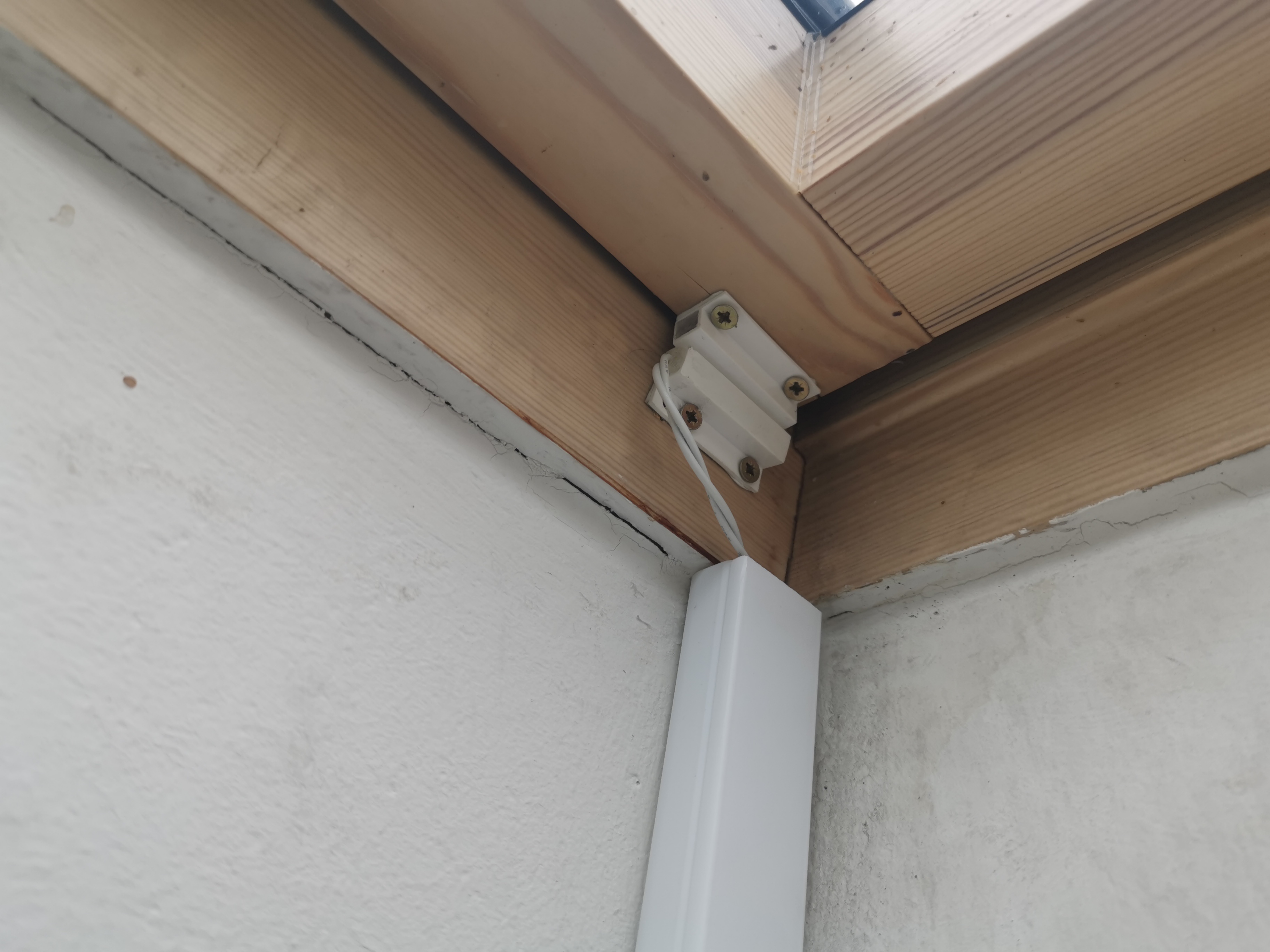

- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts)
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Use of Renewable Energies
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description

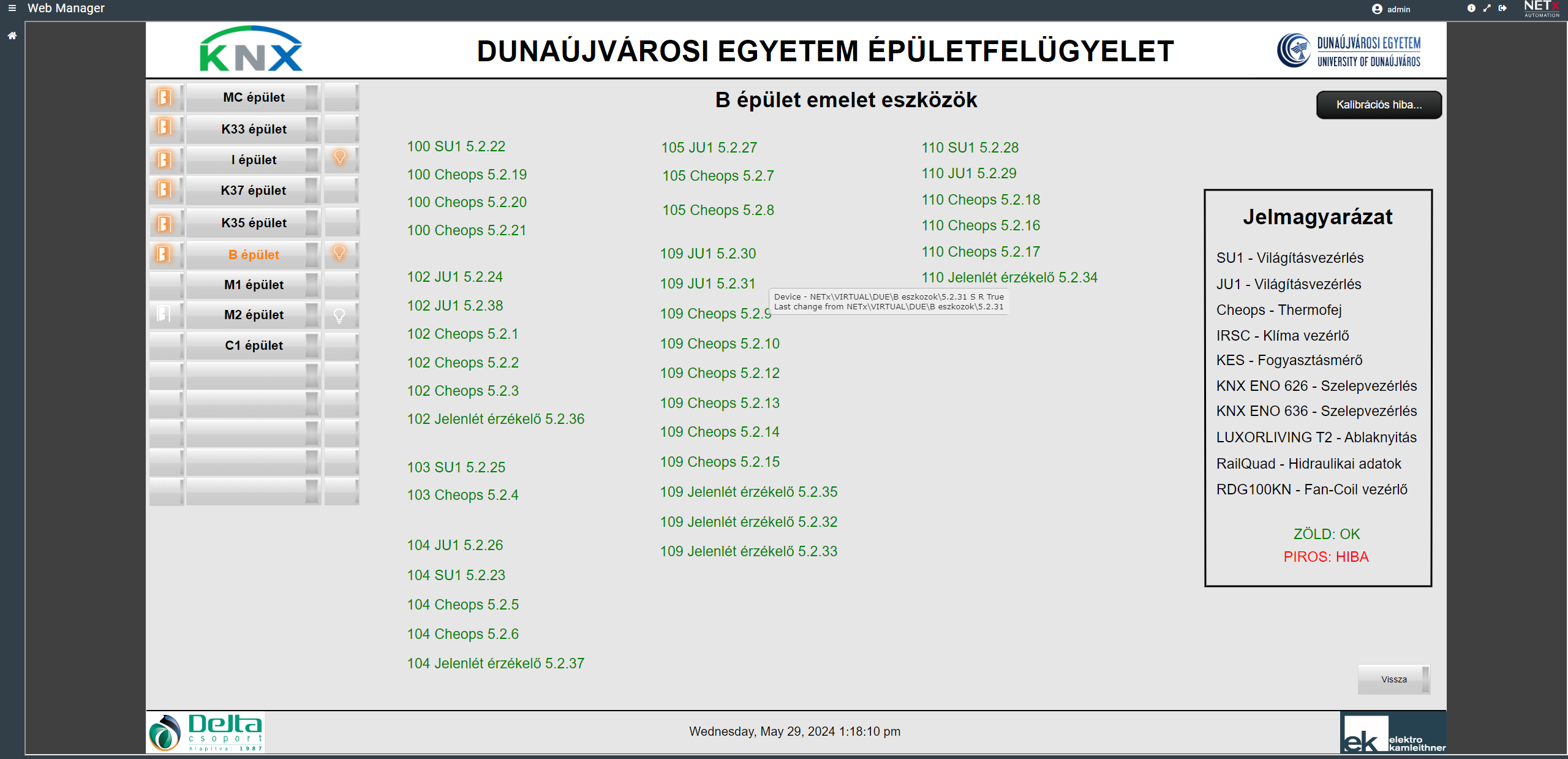

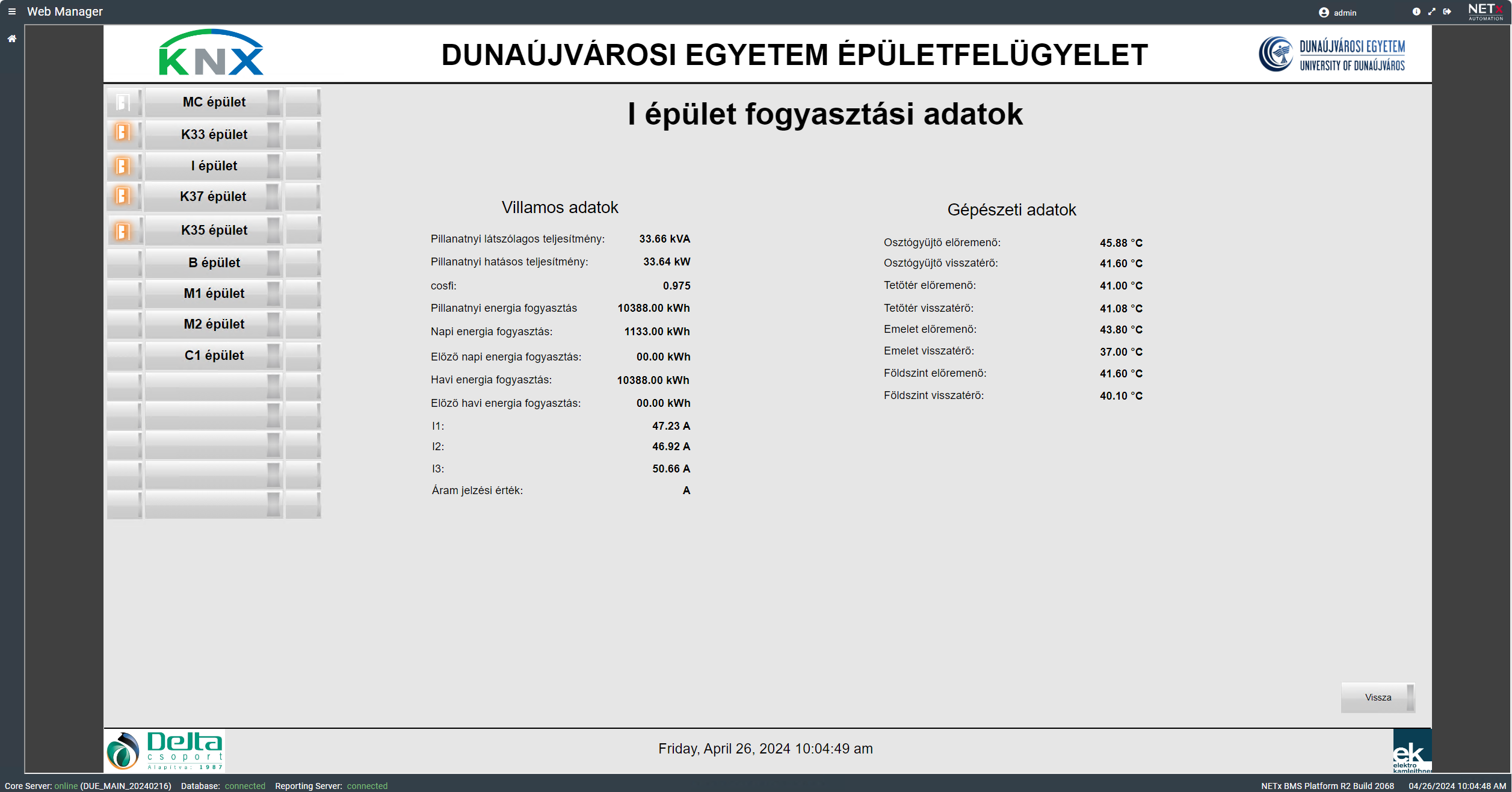

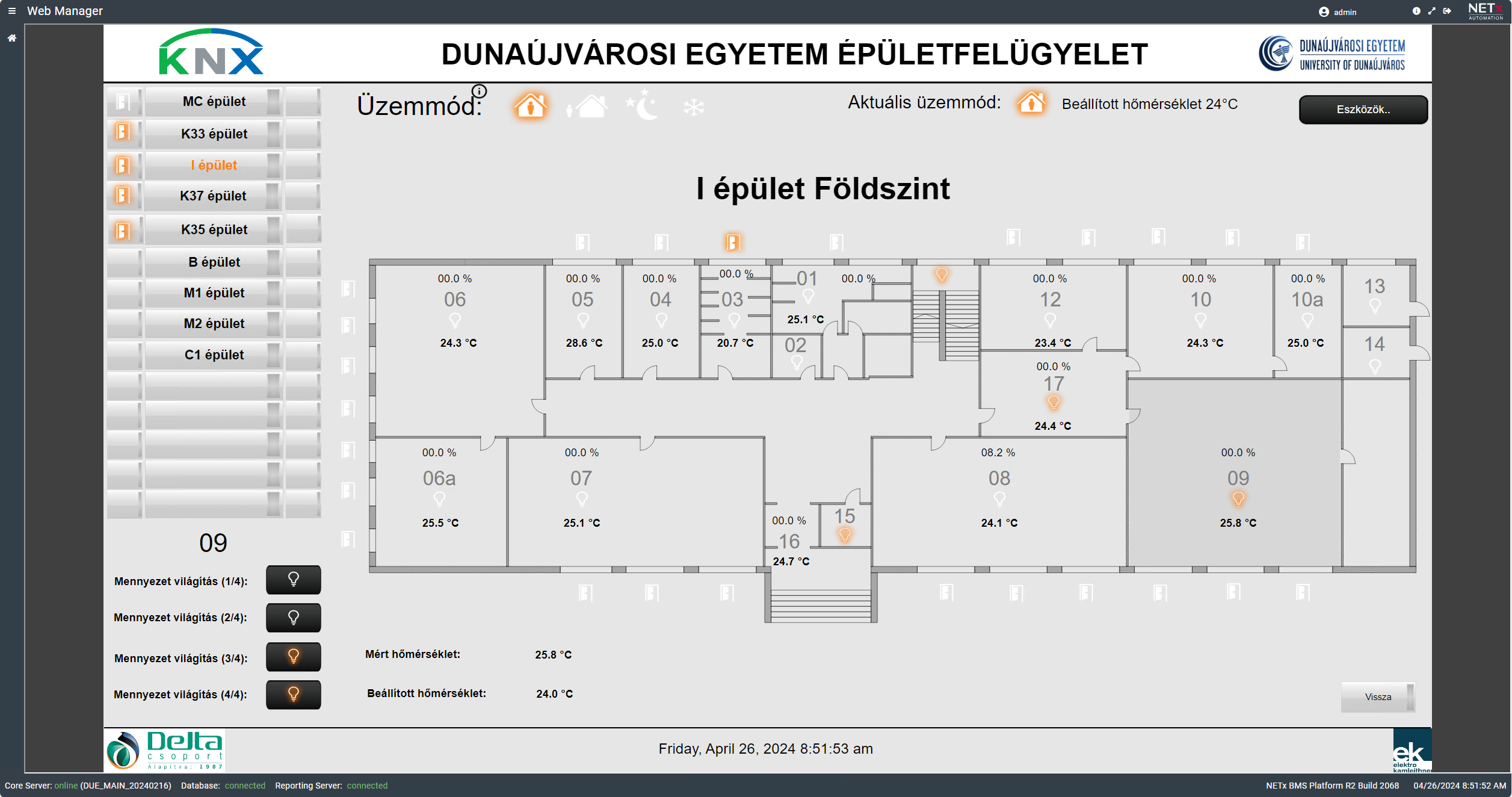

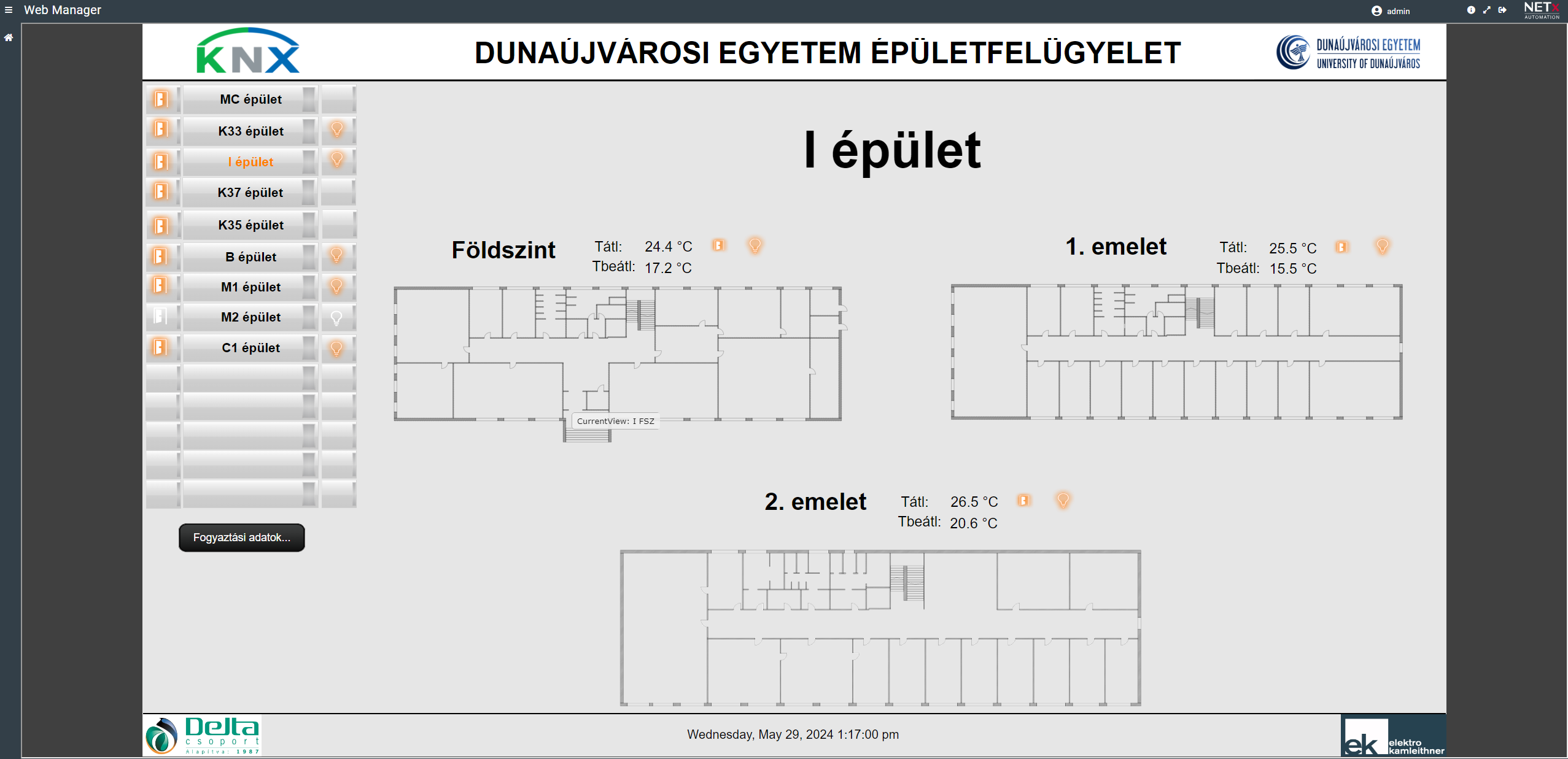

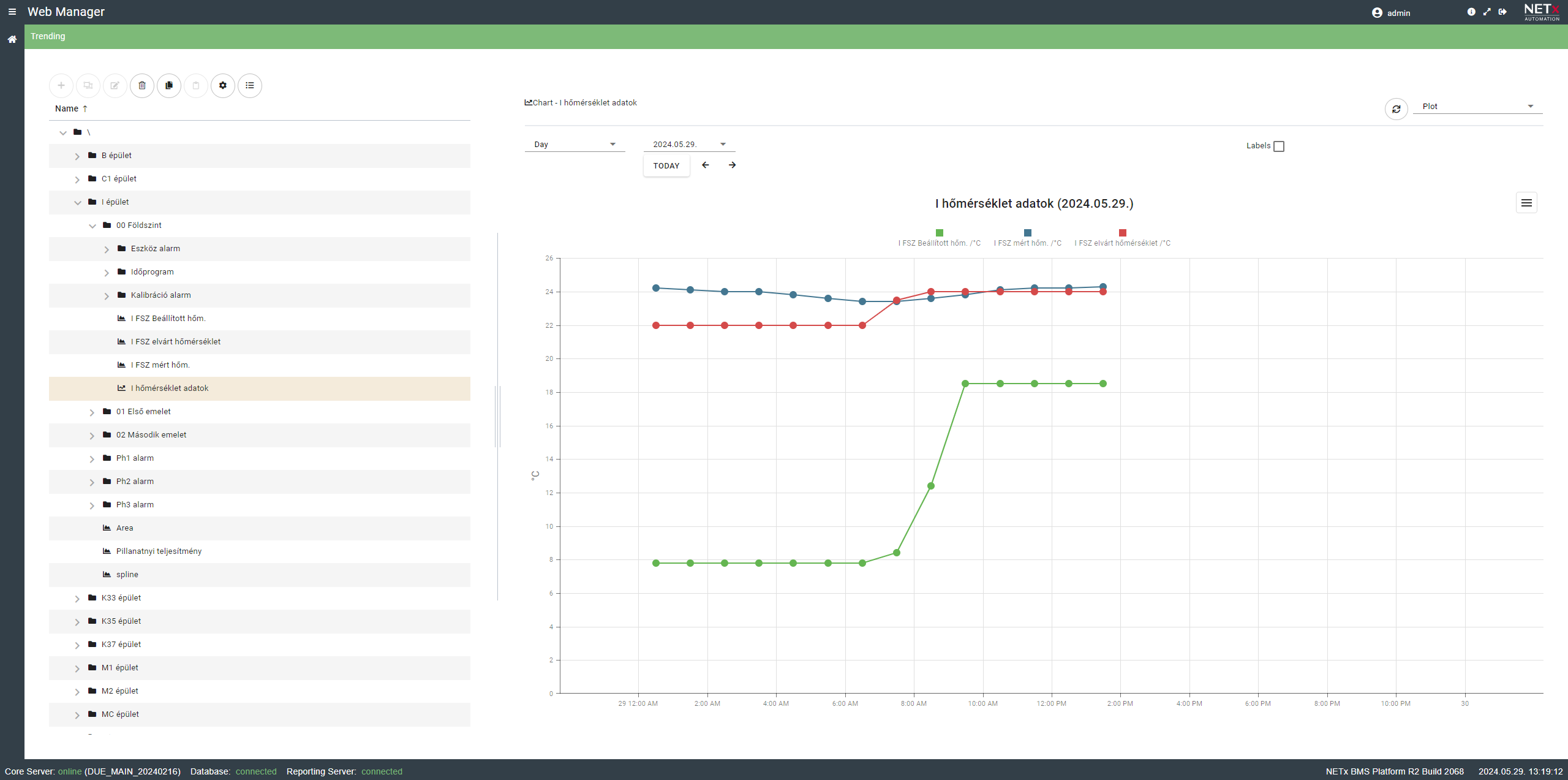

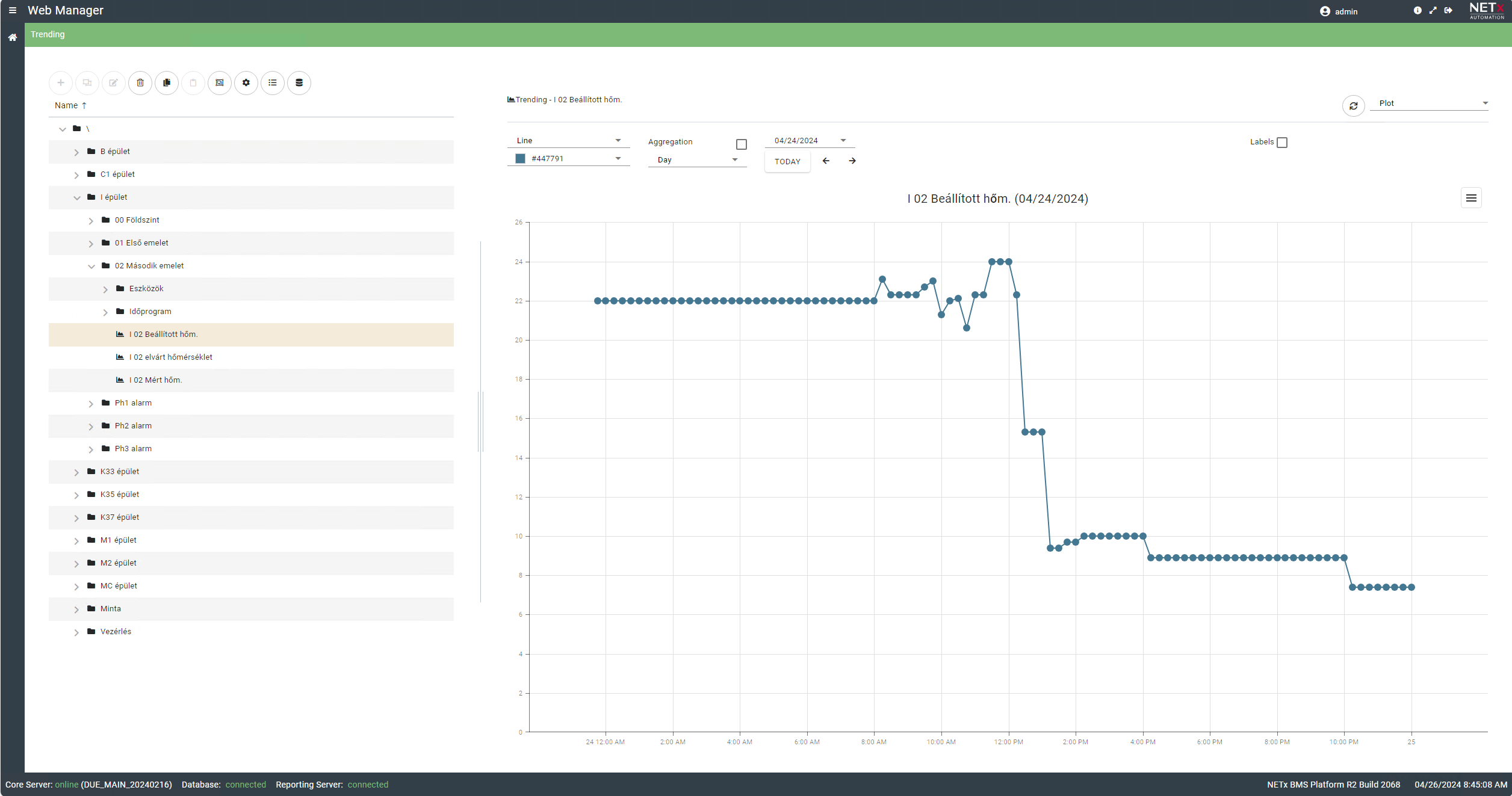

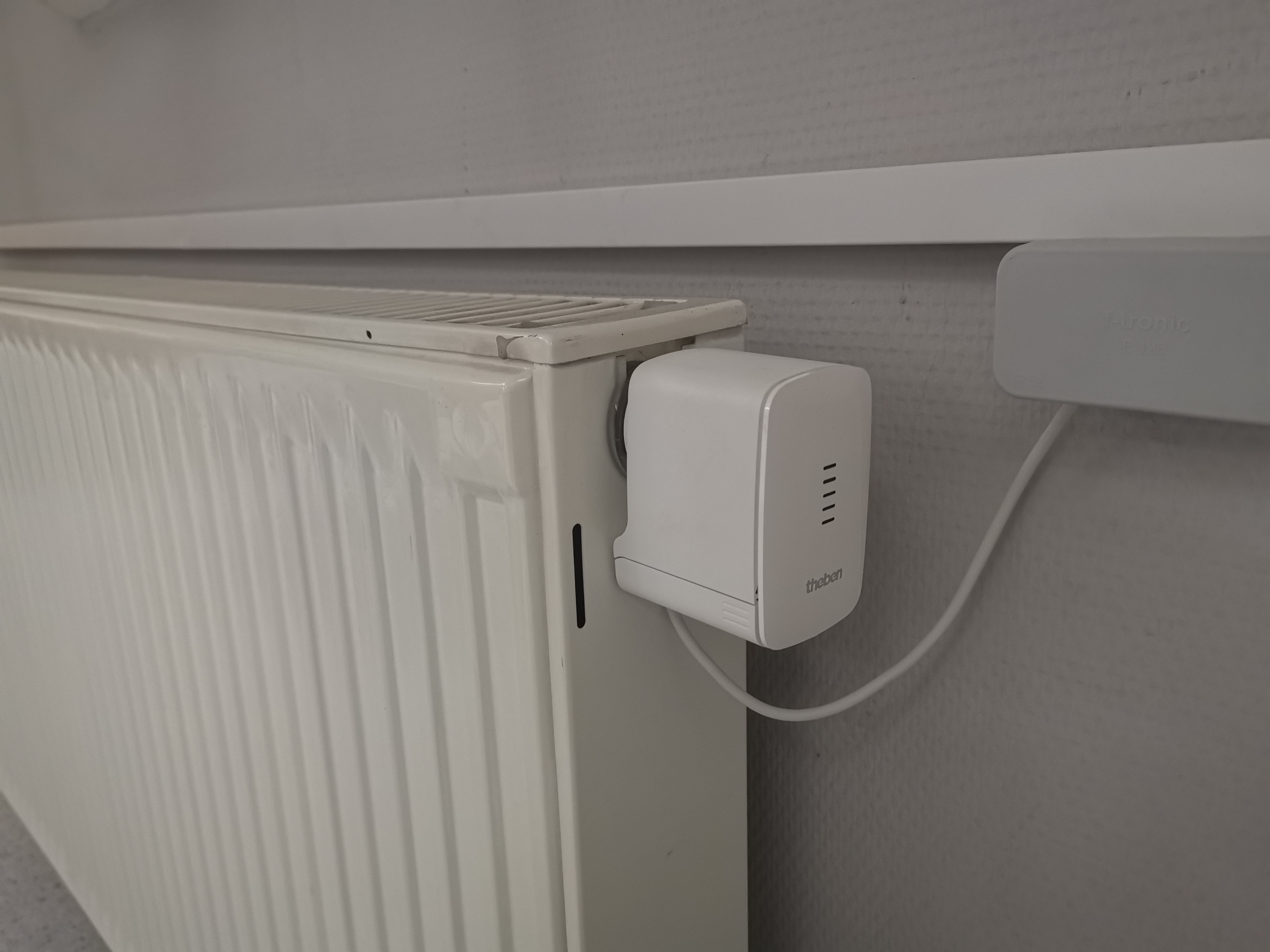

Energy prices have risen dramatically in recent years, so operation has become very expensive. That is why the investment was made. 95% of the devices use KNX TP communication. However, where the aesthetic needs of the buildings required, wireless thermoheads were installed on 40 radiators. In most of the rooms, the lighting control was also realized with the help of actuators and push buttons installed in place of traditional switches. The KNX electricity consumption meters in the educational buildings measure the consumption by level at the main supply in the dormitories. In the garden of future developments, the entire air handling system of a completely finger-built building will be integrated into the system. The current visualization with 20,000 data points can reach 30,000 data points with full deployment. A further energy-saving development is the integration of the heat quantity meters, water meters and DHW circulation control of all heating centers.
Contact Information
| Company Name | Elektro-Kamleithner Kft. |
| Company Email | info@ek.hu |
| Company Website | https://www.elektro-kamleithner.hu/ |
| Contact Name | Zoltan Balogh |
