ZEPPELIN CAT Upgrade (Beleuchtungstechnische Anlagen)
Entertainment in Friedrichshafen
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Entertainment |
| Project Type | Commercial |
| Year of Completion | 2019 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 1 – 25 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 101 – 250 |
| Man Power | 1 – 5 |
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Dimming, Light Scenes
- Heating, Ventilation & Air conditioning (HVAC) - CO2 / Humidity Measuring
- Security and Safety - Smoke/Fire Detection, Emergency Lighting
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Automatic Programs, Wind and Rain Protection
Customers Description
Ende 2018 konnte einer LED-Beleuchtungsausrüstung entspochen werden. Auf den Prozess bezogen wird mit der neuen Technik eine Energieeinsparung von rund 60% erreicht. Erklärtes Ziel war weiterhin die Steigerung von Flexibilität und Effektivität mit Hilfe der Dali-Technik und einer aktiven Tageslichtnutzung in unserer ZEPPELIN CAT Halle (A1) sowie die Implementierung von Betriebsstundenzählern in unserer Energiemanagement –Software.

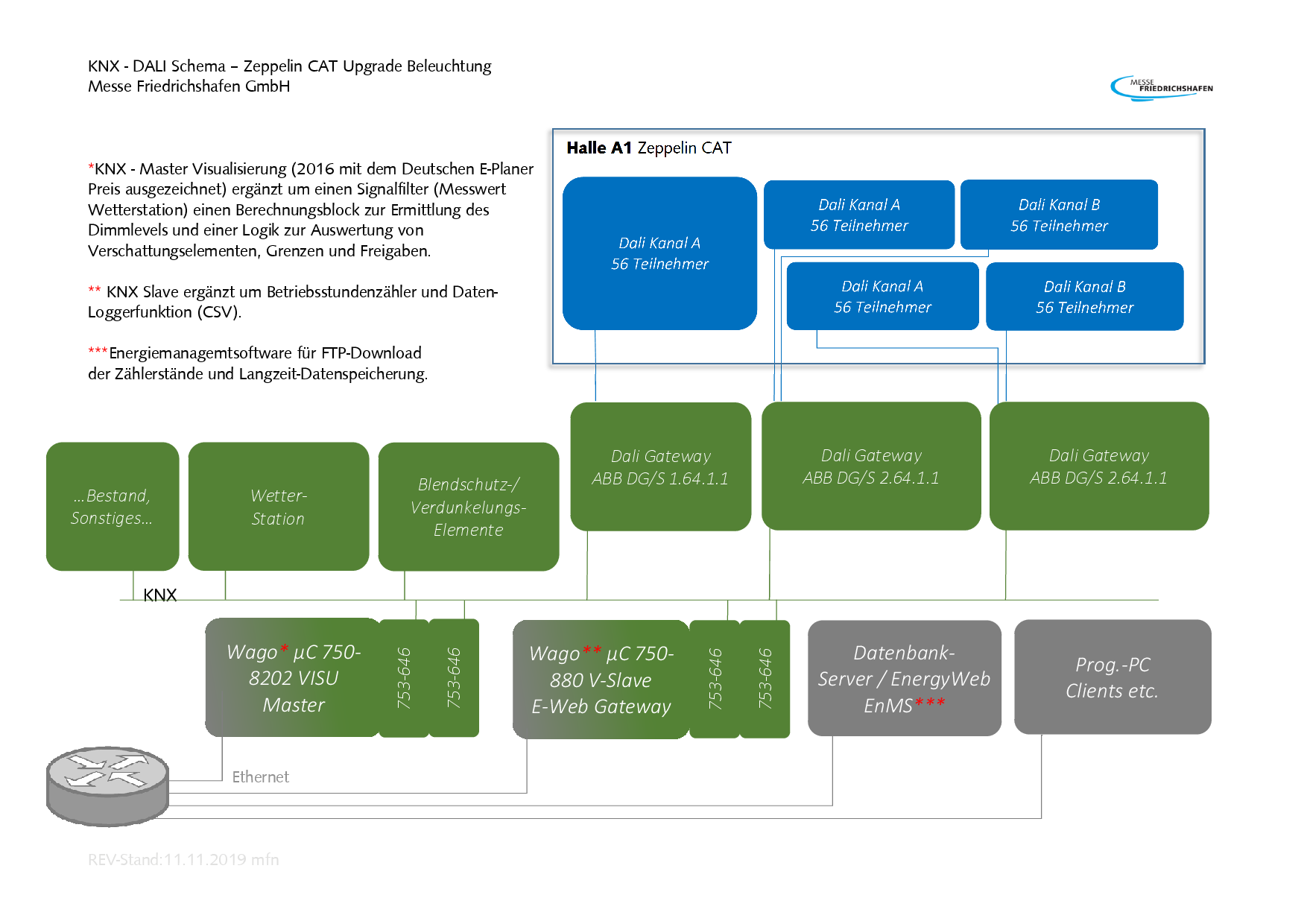

Die Wahl einer geeigneten Praktik fiel wegen innerer Störgrößen (Verbauung, Standbeleuchtung, Fläche) auf die Methode der tageslichtabhängigen Steuerung. Hierbei wird der Helligkeitsmesswert einer KNX-Wetterstation in einem Wago-Controller gefiltert (binomial), das Dimmlevel über den mittleren Tageslichtquotienten berechnet, die Sendefreigabe mittels einer Logik geprüft und entsprechend das Ergebnis über den Bus an die Dali-Gateways gesendet.
Contact Information
| Company Name | Messe Friedrichshafen GmbH |
| Company Email | |
| Company Website | https://www.messe-friedrichshafen.de/ |
| Contact Name | |
| Contact Function | System Integrator |
