Dousmani Residence
Apartment in Athens
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Apartment |
| Project Type | Residential |
| Year of Completion | 2022 |
| Project Size | 101 – 500 |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 1 – 100 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used

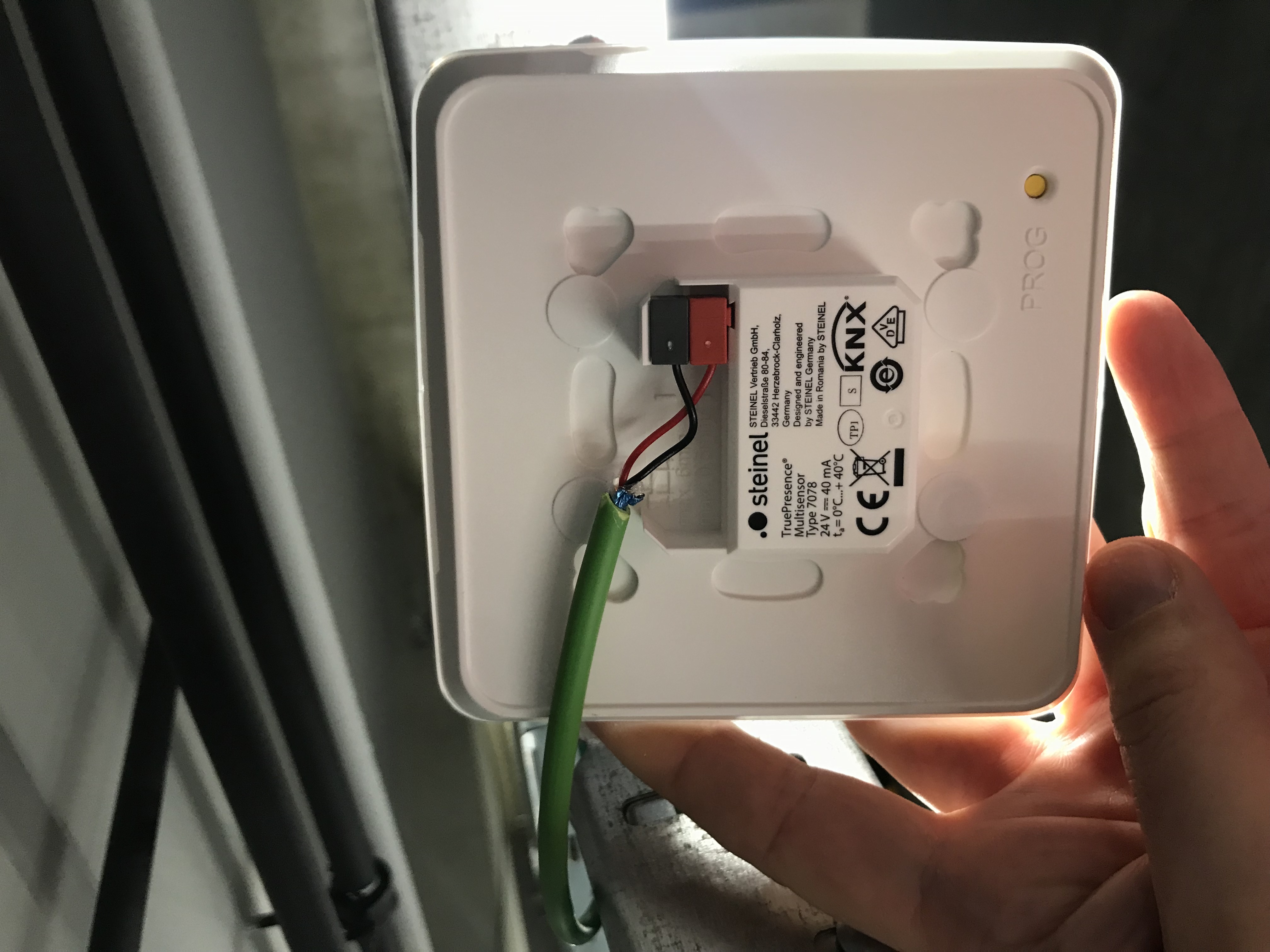

- Lighting - Switching, Dimming, Light Scenes, Timed Control, Automatic Occupancy Detection
- Heating, Ventilation & Air conditioning (HVAC) - Central & Automatic Control, Timed Operation Modes, Individual Room Control / Zone Control, Valve Drive Control / Fan Coil Control, Floor Heating Control, Boiler and burner Control
- Security and Safety - Faults (e.g. Leak Detection, Glass Break Detection, Window Contacts), Intrusion Detection / Alarm Systems, Interaction with HVAC/Lighting

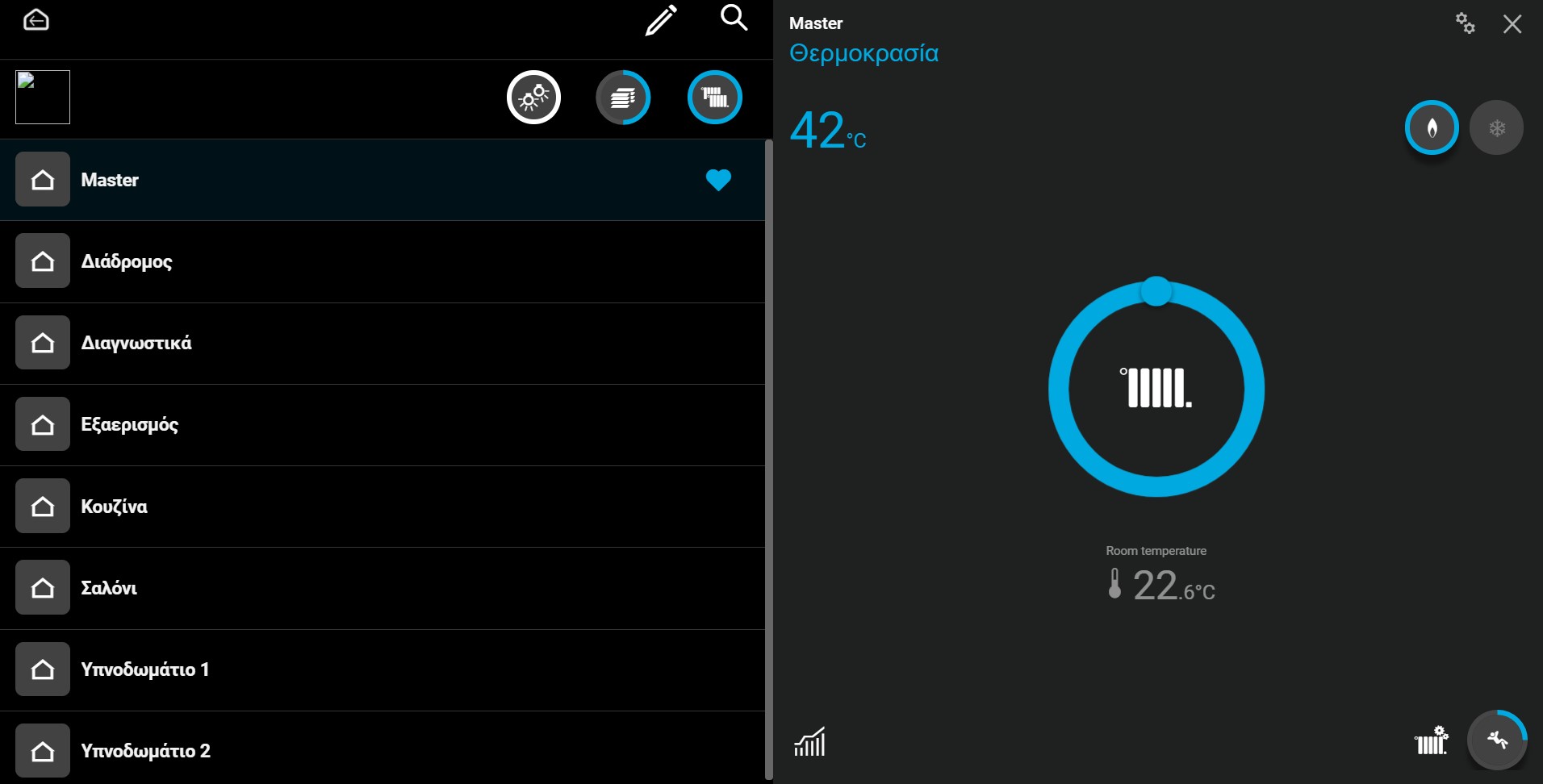

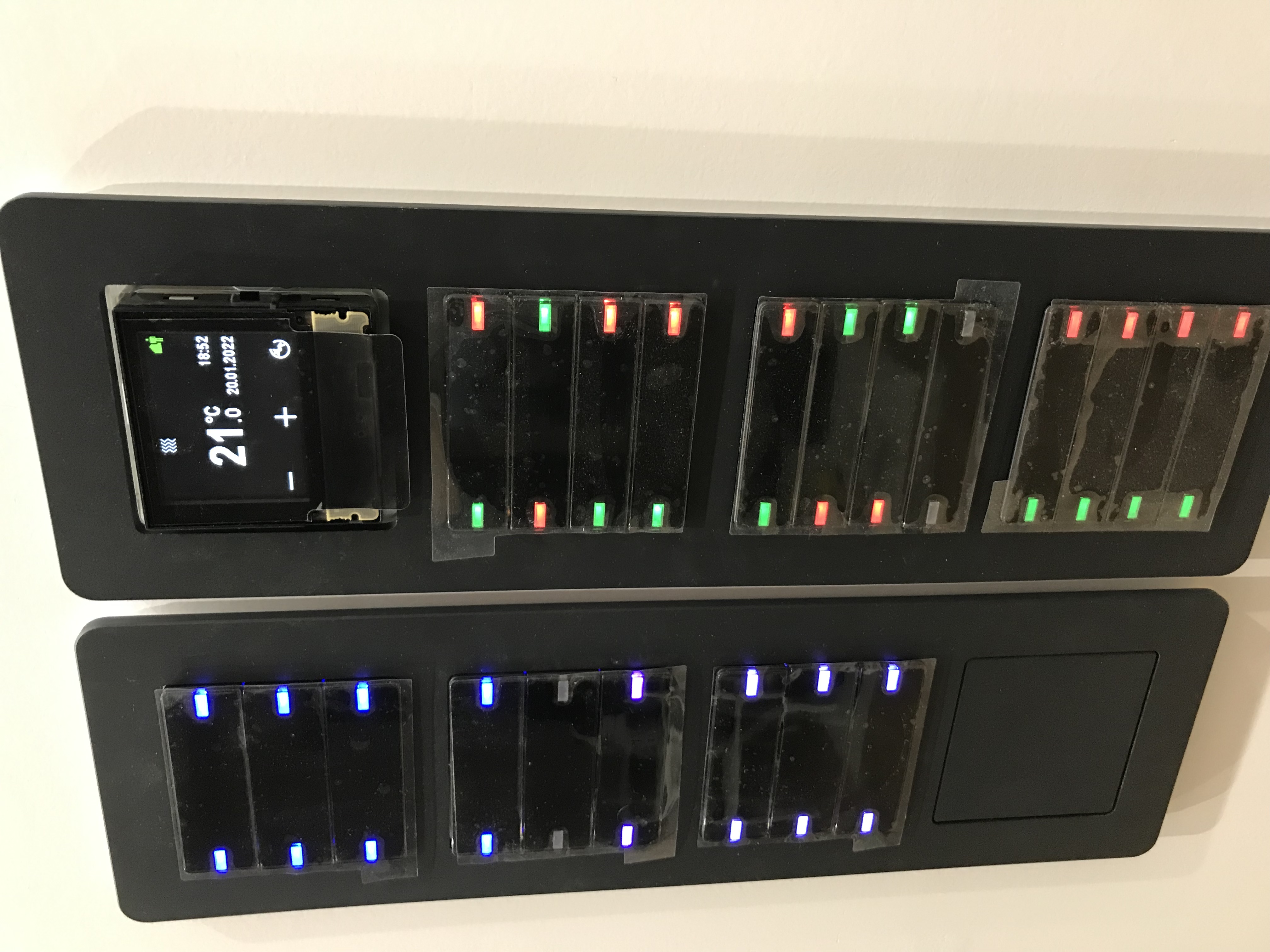

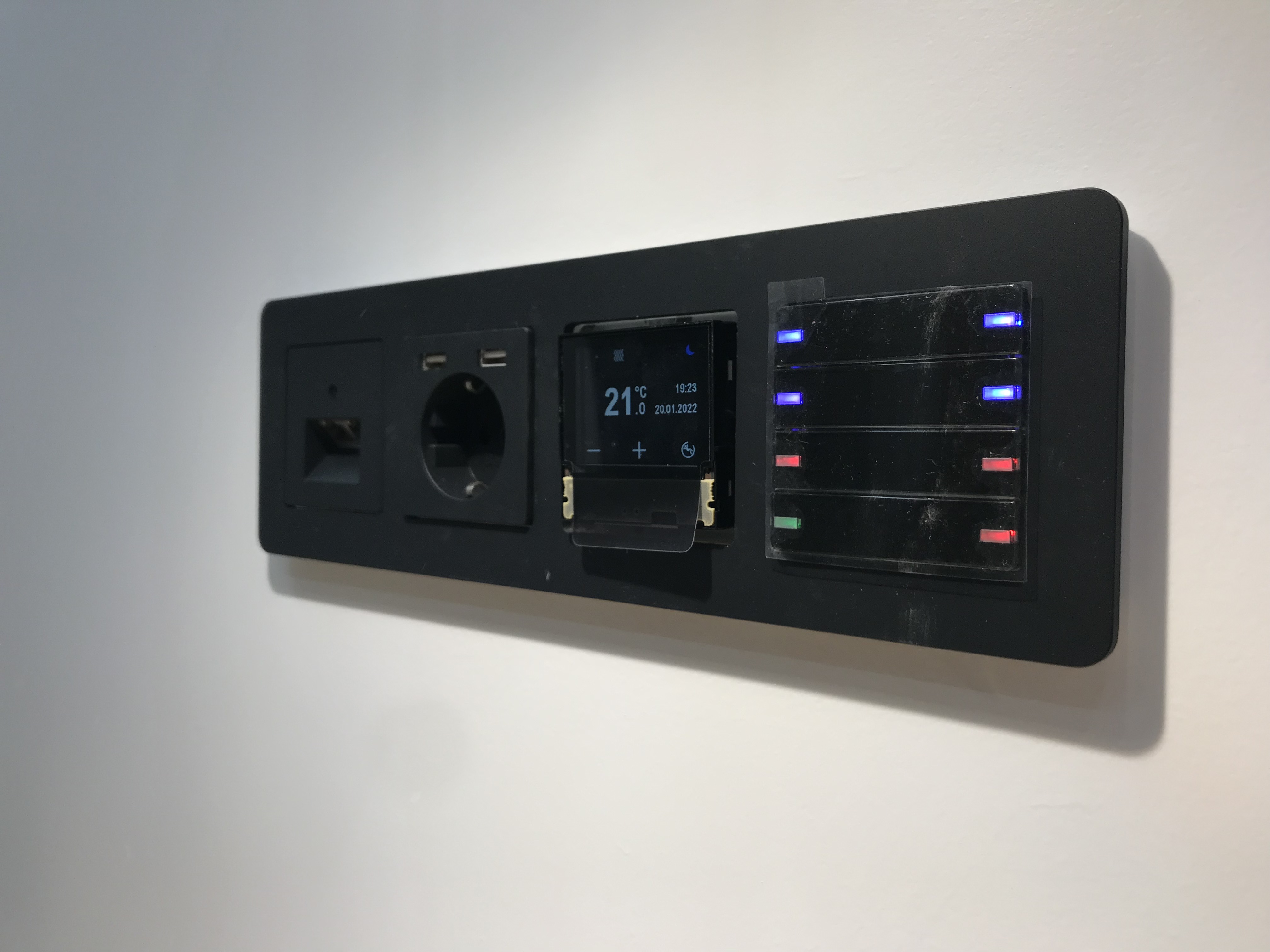

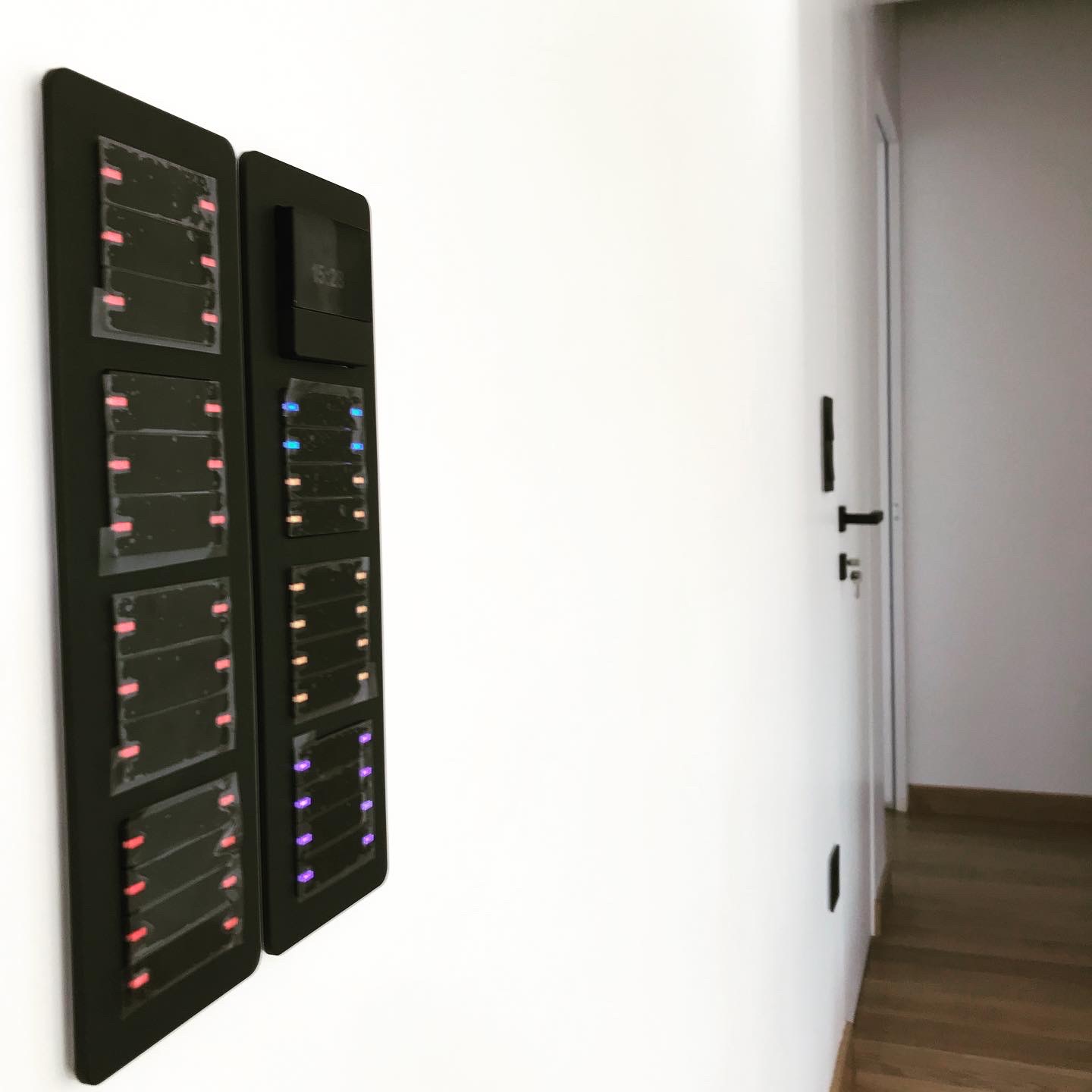

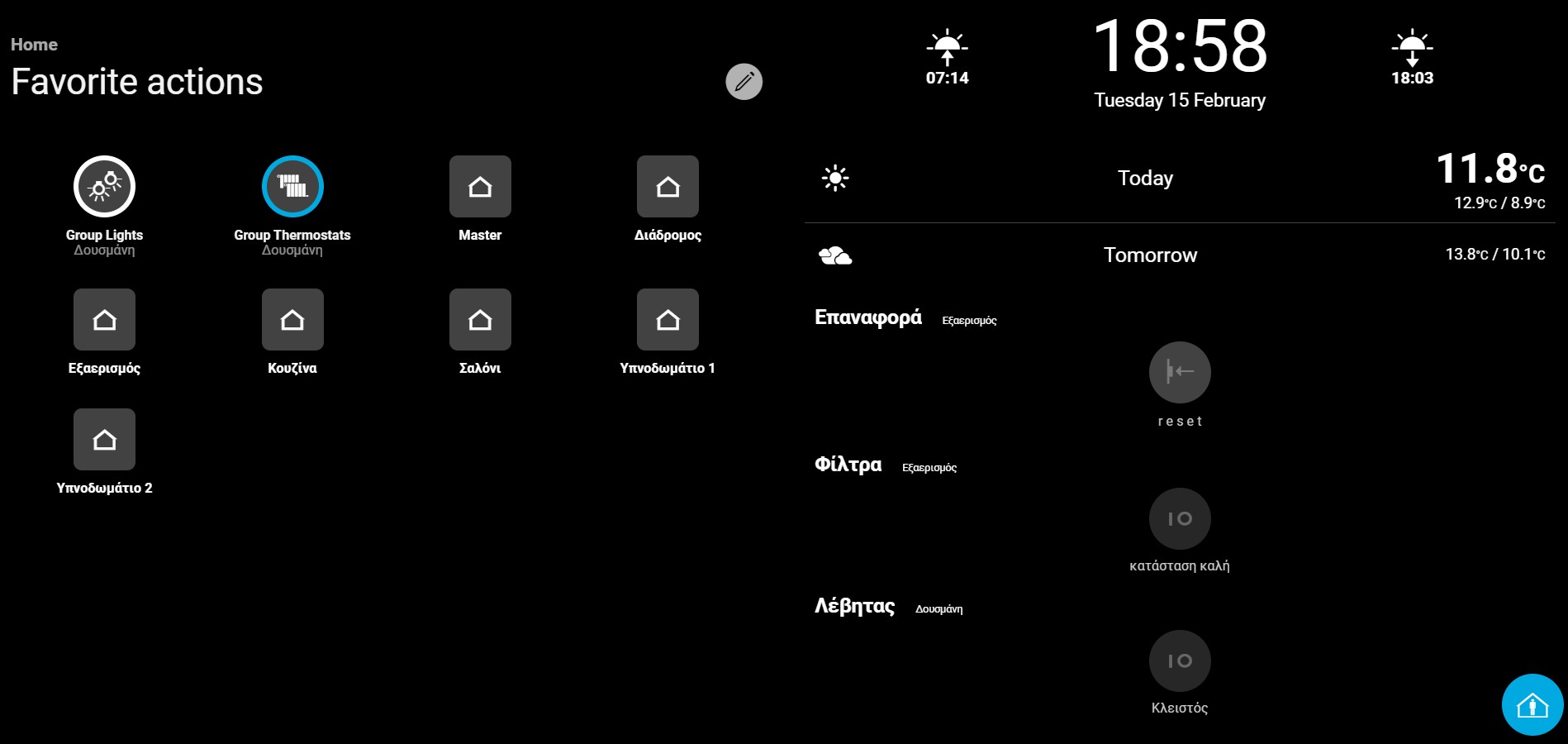

- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Data Logging, Visualisation
- Other
- Automation and Remote Access - Timed Functions, Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control - Individual Control, Group & Central Control, Preset Positioning, Automatic Programs
Customers Description

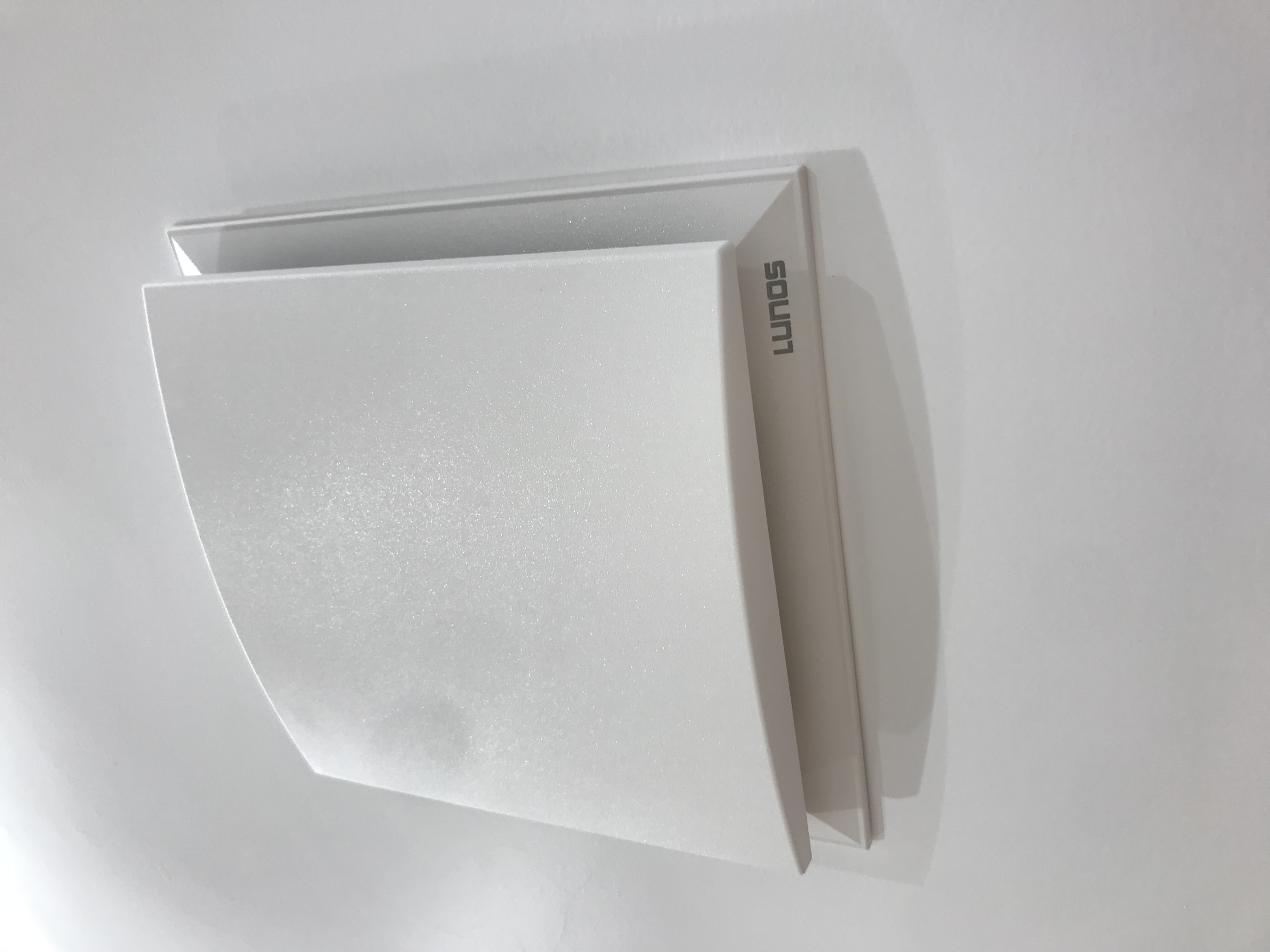

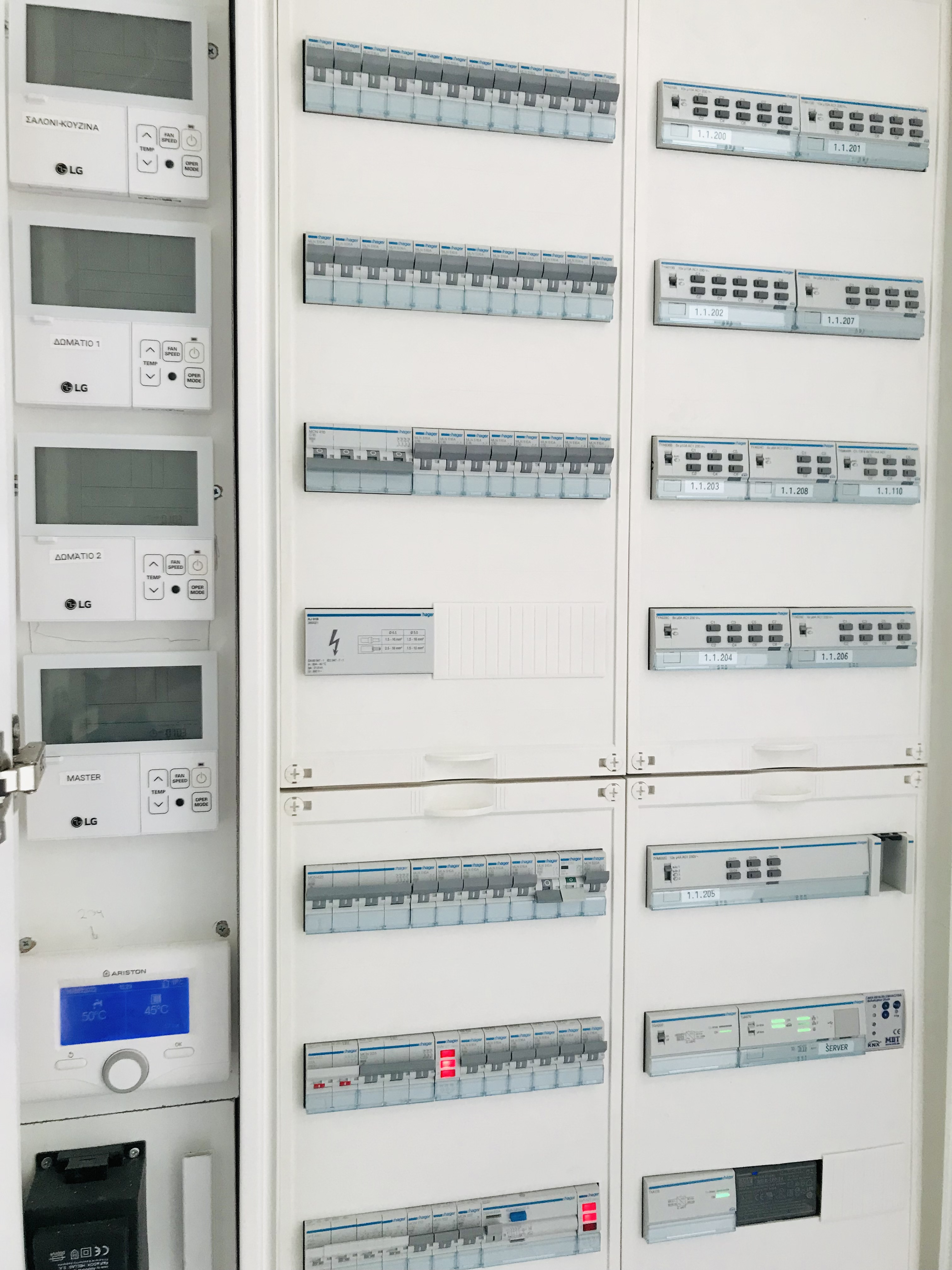

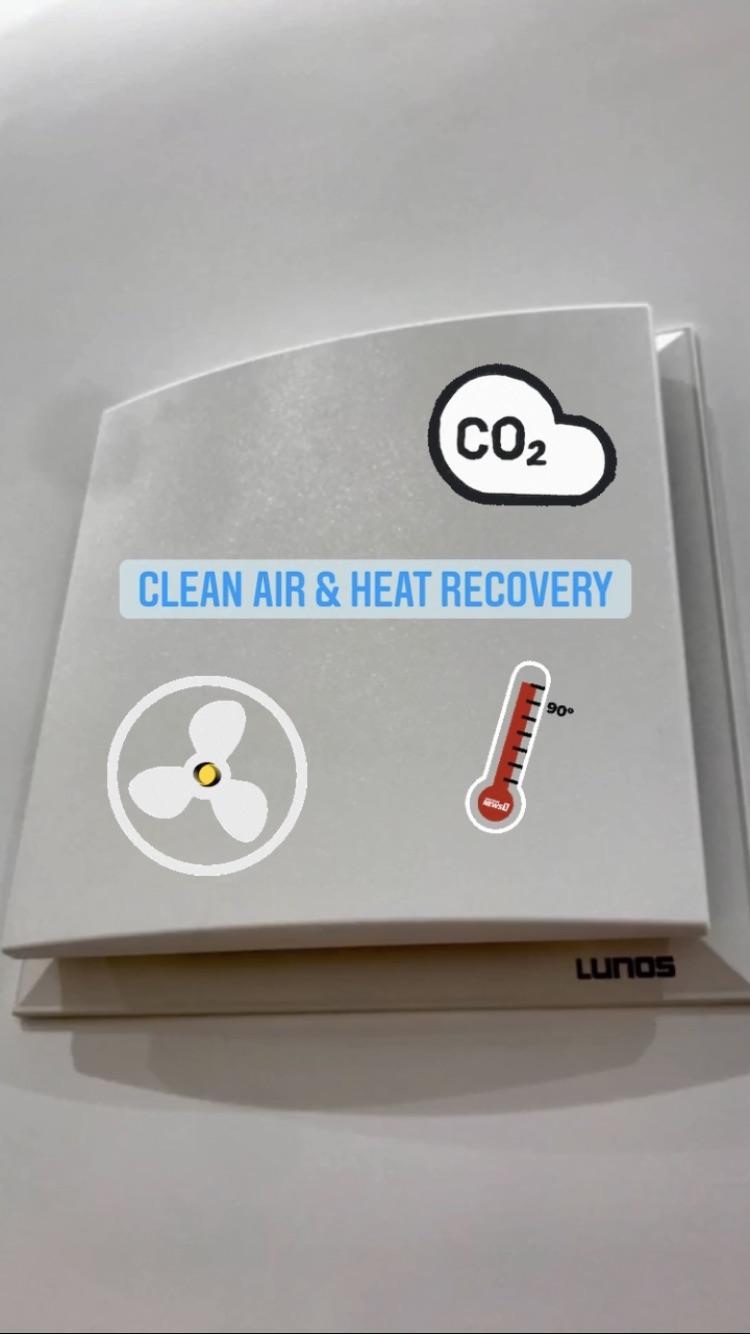

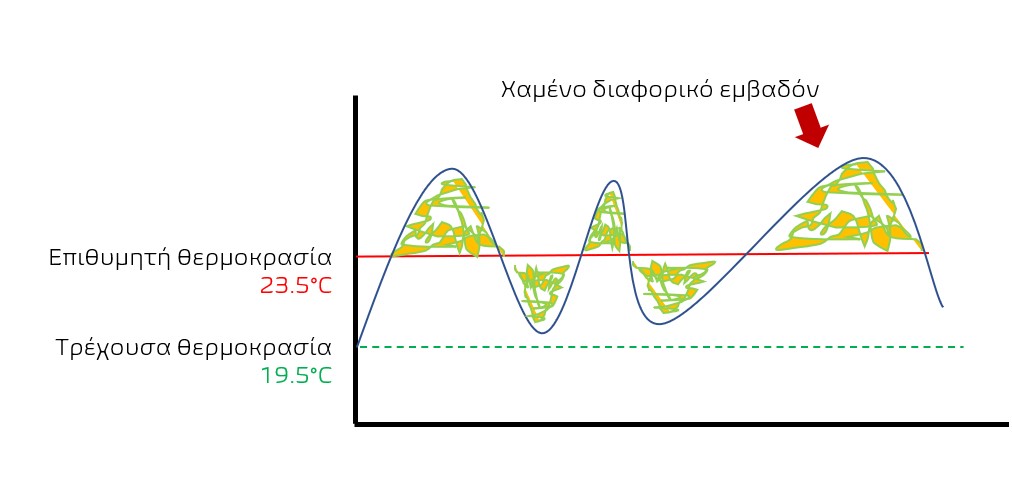

The owner of this apartment wanted a TOTAL integration in terms of energy management especially regarding the HVAC systems. So we had to control the underfloor heating using a gas boiler, as a production system and then drive the electrothermic heads on the heating manifold in a sophisticated way using the so called PI-PWM, in order to avoid energy waste and comfort disruption. The VRV system was also integrated into the KNX system using the appropriate gateways and also giving the users total control of literally all the functions of the A/C units. Finally the apartment was equipped with LUNOS which is an interior air quality system. That was integrated into KNX using the Arcus-Eds gateway giving the users the ability to control and monitor the functionality of the units. This system offers heat recovery via the integrated ceramic heat exchanger with a result of 91% and at the same time the noise level of the fans is maintained at the lowest level based on the international SONE chart
Contact Information
| Company Name | cognitive |
| Company Email | info@cognitive.gr |
| Company Website | https://cognitive.gr |
| Contact Name | Athanasios iLiadis |
| Contact Function | System Integrator |
