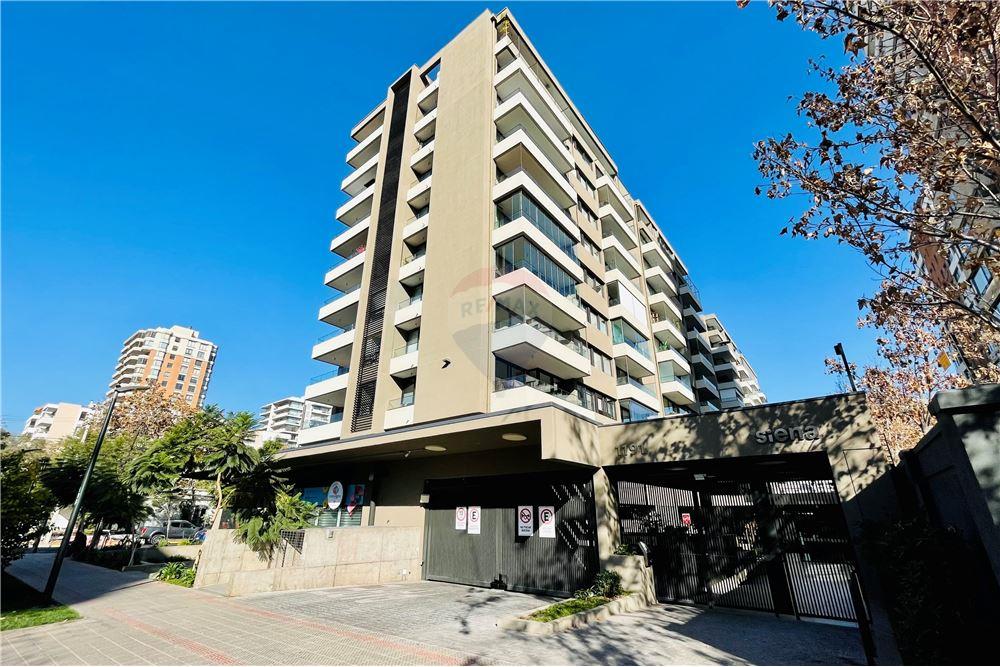

Edificio Residencial Eliodoro Mix
Apartment in Providencia
Applications Used
Lighting
Heating, Ventilation & Air conditioning (HVAC)
Security and Safety
Operation and Visualisation
Energy Management/Smart Metering
Other
Automation and Remote Access
Blind and Shutter Control
Project Details
| Category | Value |
|---|---|
| Project Category | Apartment |
| Project Type | Residential |
| Year of Completion | 2020 |
| Project Size | 5.000+ |
| Number of KNX Devices Used | 26 – 100 |
| KNX Transmission Media | Twisted pair |
| Man Hours | 251 – 500 |
| Man Power | 1 – 5 |
Featured in this project
Detailed Description
Energy Efficiency
The usage of automated functions already save energy in every installation. Especially the usage of KNX has a lot of potential for further energy savings, which can contribute to a better environmental footprint. Be extending KNX to more functions and applications, energy savings of up to 60% can be realised. Thanks to the flexibility of KNX, these functions can easily be implemented in this installation
Innovation
Smart homes and buildings are always an upgrade in comparison to a conventional installation. Not only automated functions and a higher level of comfort contribute to a higher living standard, but also the possibility to be ready for coming innovations. Thanks to the usage of KNX, the door has been opened to integrate new innovative solutions, using the worldwide STANDARD for home and building control.
Applications Used
- Lighting - Switching, Timed Control
- Heating, Ventilation & Air conditioning (HVAC)
- Security and Safety
- Operation and Visualisation - Switches / Push Buttons, PC Visualisation, Web Servers, Touch Panels & Display Panels, Tablets and smart phones
- Energy Management/Smart Metering - Metering, Data Logging, Visualisation, Current Detection, Energy Harvesting (Avoiding use of batteries)
- Other - Distributed Facilities
- Automation and Remote Access - Logical Functions, System Supervision, Internet Access, Remote Programming, Messaging (e.g. SMS)
- Blind and Shutter Control
Customers Description
Proyecto KNX para el control de Iluminación y monitoreo de alarmas técnicas y estados de funcionamiento de climatización, caldera y sanitario. Además, mediante Modbus se realiza el monitoreo de medidores de energía y controlador de banco de condensadores, todo mediante pantalla táctil.
Todo lo anterior se eleva a un servidor en la nube vía Bacnet Tcp/IP, mediante servidor web KNX/Modbus, para así contar con registro de tendencias, alarmas vía Telegram y correo electrónico.
En resumen, el proyecto consta con cerca de 500 puntos de monitoreo/control.
Contact Information
| Company Name | ECOELEC LTDA |
| Company Email | german.cespedes@ecoelec.cl |
| Company Website | http://www.ecoelec.cl |
| Contact Name | Germán Céspedes |
| Contact Function | System Integrator |
